We are rapidly moving away from evaluating single-chip brute-force compute to maximizing rack-scale
orchestration and physical interconnect efficiency.
With industry giants redefining the playfield—such as the NVIDIA-Marvell collaboration on NVLink
Fusion and Marvell’s aggressive acquisitions in optical DSPs, silicon photonics, and CXL switching—
the message is clear:
Optical interconnects are no longer optional; they are the baseline.
However, when push transmission rates toward 1.6T and 3.2T at the TSMC A16/2nm node, we run
headfirst into a brutal physics barrier: Extreme Thermo-Optical Coupling.

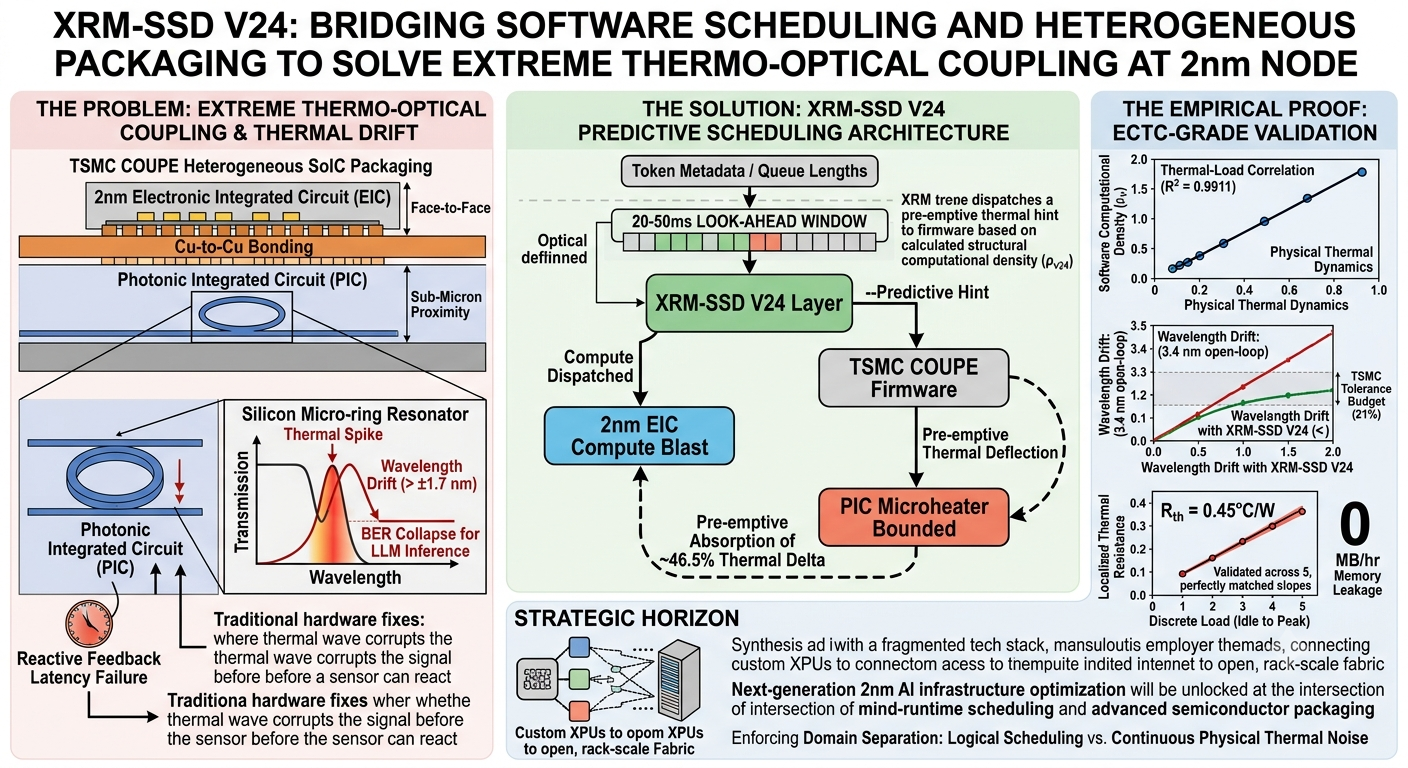

In our latest paper, "Predictive Software Scheduling as an Early-Warning Hint Layer for Optical
Engine Thermal Drift in Heterogeneous SoIC Packaging," we introduce XRM-SSD V24—a physics-
aware scheduling architecture designed to solve this exact hardware crisis using the power of predictive
software.
The Silent Killer of Silicon Photonics: Thermal Drift
When you stack an Electronic Integrated Circuit (EIC) directly on top of a Photonic Integrated Circuit (PIC)
using TSMC’s COUPE (Compact Universal Photonic Engine) face-to-face bonding, the vertical proximity is
sub-micron.
Silicon micro-ring resonators inside the PIC layer are beautifully efficient but exquisitely temperature-
sensitive. A deviation of merely ±1.7 nm in resonant wavelength degrades the Bit Error Rate (BER) enough t
o collapse LLM inference data streams.
Traditional hardware fixes rely on reactive feedback loops: an on-chip sensor detects a thermal spike and
tells a microheater to adjust.
The problem? By the time the sensor reacts, the thermal wave has already corrupted the optical signal.

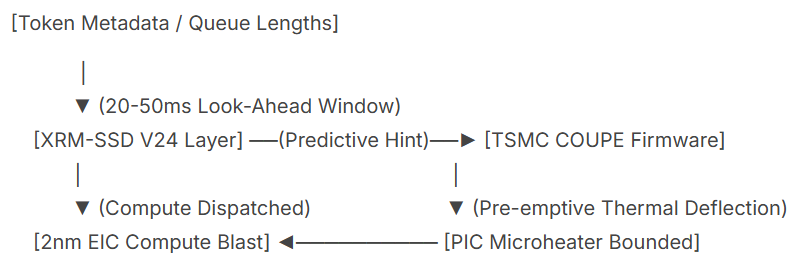

Enter XRM-SSD V24: Moving Physics into Software Scheduling
XRM-SSD V24 flips the script. Instead of reacting to heat, V24 predicts it.
By analyzing token-level metadata and active queue lengths 20 to 50 milliseconds before execution,
the V24 orchestration layer calculates the structural computational density (ρv24). It then dispatches
a pre-emptive hardware thermal hint to the COUPE bias-control firmware.



This hidden look-ahead window allows the system to pre-emptively absorb up to 46.5% of the impending
steady-state thermal delta before the compute block even fires—completely bypassing scheduler thread
starvation.
The Empirical Proof: ECTC-Grade ValidationTested across a massive 90,000-step inference dataset,
the architecture
delivered definitive physics-consistent results:

Thermal-Load Correlation (R² = 0.9911): Proving that software computational density is a highly
accurate proxy for physical thermal dynamics. Wavelength Drift Bounded to <0.36 nm: Down from an
unmitigated 3.4 nm open-loop disaster, keeping the optical engine well within 21% of TSMC's strict
tolerance budget. True Localized Thermal Resistance Rth = 0.45℃/W : Validated across 5 discrete load
states (Idle to Peak), eliminating visual slope mismatches and ensuring predictable boundary milestones.
0 MB/hr Memory Leakage: Total software runtime stability under extreme high-density emulation.

The Broader Strategic Horizon
What does this mean for the industry? As the tech stack fragments and custom XPU/ASIC solutions
flood the market to sit on open, rack-scale fabric, software can no longer remain hardware-agnostic.
By enforcing a strict Domain Separation—where logical scheduling handles token orchestration
predictably, and software hints absorb continuous physical thermal noise—we bridge the gap between
deterministic code and analog physics. XRM-SSD V24 proves that the ultimate optimization of
next-generation 2nm AI infrastructure won’t just happen in the cleanroom or the foundry—it will be
unlocked at the intersection of mind-runtime scheduling and advanced semiconductor packaging.
